Type KRA 7

Type KRA 7

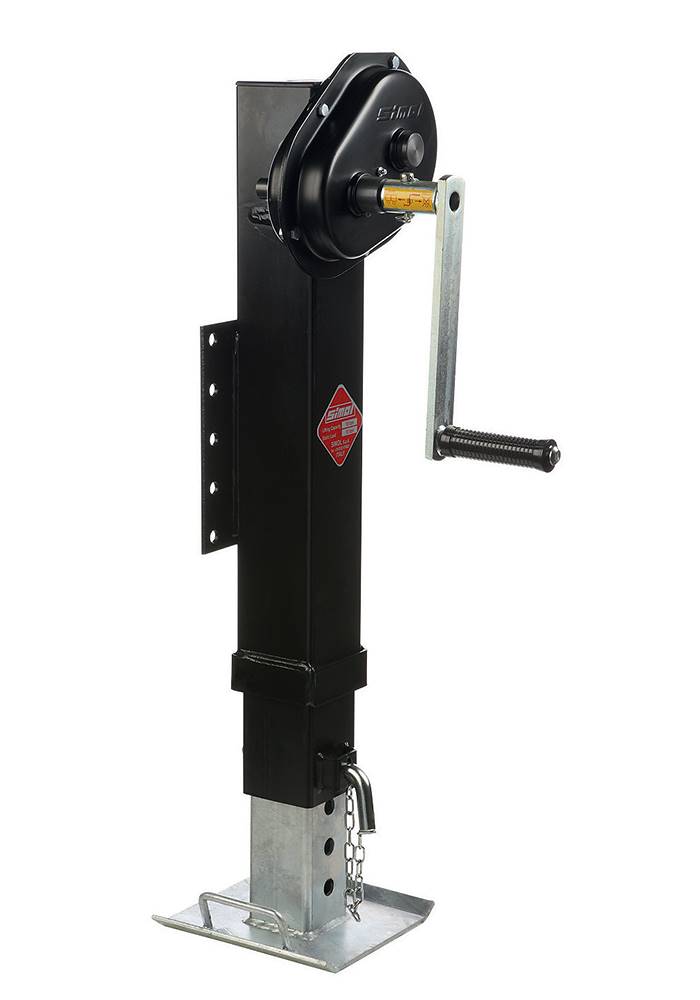

"Landing gears for tandem trailers, drop leg, gear box, 2-speed" designed hd square jacks
Request information Download technical material
Jacks and jockey wheels are partly completed machineries in compliance with Provisions of the Machinery Directive 2006/42/CE. The partly completed machinery must not be put into service until the final machinery into which it is to be incorporated has been declared in conformity with the Provisions of the Machinery Directive, where appropriate.

Technical data and performance

Surface treatment
Note
Outer tube (in)
Max. static load (lb)
Screw stroke (in ±0.39)
Unitary weight (lb)
B - Lenght outer tube (in)
C - stroke (in)
D - Total height when retracted (in)
E - handle lenght (in)
G - footplate dimension (in)
H - dropleg extension (in)
On request
KRA750
Hd Square Jacks
Surface treatment red water based rust preventer
Note
Outer tube (in)☐ 4.33
Max. static load (lb)26460.00
Screw stroke (in ±0.39)16.54
Unitary weight (lb)95.26
B - Lenght outer tube (in)27.56
C - stroke (in)16.54
D - Total height when retracted (in)32.28
E - handle lenght (in)9.84
G - footplate dimension (in)9.84
H - dropleg extension (in)11.81
On requestNo
KRA750FL
Hd Square Jacks
Surface treatment red water based rust preventer
Note
Outer tube (in)☐ 4.33
Max. static load (lb)26460.00
Screw stroke (in ±0.39)16.54
Unitary weight (lb)98.34
B - Lenght outer tube (in)27.56
C - stroke (in)16.54
D - Total height when retracted (in)32.28
E - handle lenght (in)9.84
G - footplate dimension (in)9.84
H - dropleg extension (in)11.81
On requestYes
KRA750FL/N
Hd Square Jacks
Surface treatment sandblasting and cataphoresis
NoteElectro-painting (DIP)
Outer tube (in)☐ 4.33
Max. static load (lb)26460.00
Screw stroke (in ±0.39)16.54
Unitary weight (lb)98.56
B - Lenght outer tube (in)27.56
C - stroke (in)16.54
D - Total height when retracted (in)32.28
E - handle lenght (in)9.84
G - footplate dimension (in)9.84
H - dropleg extension (in)11.81
On requestYes
KRA750FL/ZC
Hd Square Jacks
Surface treatment hot-dip galvanized
Note
Outer tube (in)☐ 4.33
Max. static load (lb)26460.00
Screw stroke (in ±0.39)16.54
Unitary weight (lb)99.23
B - Lenght outer tube (in)27.56
C - stroke (in)16.54
D - Total height when retracted (in)32.28
E - handle lenght (in)9.84
G - footplate dimension (in)9.84
H - dropleg extension (in)11.81
On requestYes
Hd Square Jacks > Type KRA 7
Type KRA 7
Landing gears for tandem trailers, drop leg, gear box, 2-speed
KRA750FL/N
KRA750FL/N
KRA750
KRA750
page-break
Technical data and performance
Type KRA 7
Surface treatment
Note
Outer tube (in)
Max. static load (lb)
Screw stroke (in ±0.39)
Unitary weight (lb)
B - Lenght outer tube (in)
C - stroke (in)
D - Total height when retracted (in)
E - handle lenght (in)
G - footplate dimension (in)
H - dropleg extension (in)
On request
KRA750
Hd Square Jacks
Surface treatment red water based rust preventer
Note
Outer tube (in)☐ 4.33
Max. static load (lb)26460.00
Screw stroke (in ±0.39)16.54
Unitary weight (lb)95.26
B - Lenght outer tube (in)27.56
C - stroke (in)16.54
D - Total height when retracted (in)32.28
E - handle lenght (in)9.84
G - footplate dimension (in)9.84
H - dropleg extension (in)11.81
On requestNo
KRA750FL
Hd Square Jacks
Surface treatment red water based rust preventer
Note
Outer tube (in)☐ 4.33
Max. static load (lb)26460.00
Screw stroke (in ±0.39)16.54
Unitary weight (lb)98.34
B - Lenght outer tube (in)27.56
C - stroke (in)16.54
D - Total height when retracted (in)32.28
E - handle lenght (in)9.84
G - footplate dimension (in)9.84
H - dropleg extension (in)11.81
On requestYes
KRA750FL/N
Hd Square Jacks
Surface treatment sandblasting and cataphoresis
NoteElectro-painting (DIP)
Outer tube (in)☐ 4.33
Max. static load (lb)26460.00
Screw stroke (in ±0.39)16.54
Unitary weight (lb)98.56
B - Lenght outer tube (in)27.56
C - stroke (in)16.54
D - Total height when retracted (in)32.28
E - handle lenght (in)9.84
G - footplate dimension (in)9.84
H - dropleg extension (in)11.81
On requestYes
page-break
Technical data and performance
Type KRA 7
Surface treatment
Note
Outer tube (in)
Max. static load (lb)
Screw stroke (in ±0.39)
Unitary weight (lb)
B - Lenght outer tube (in)
C - stroke (in)
D - Total height when retracted (in)
E - handle lenght (in)
G - footplate dimension (in)
H - dropleg extension (in)
On request
KRA750FL/ZC
Hd Square Jacks
Surface treatment hot-dip galvanized
Note
Outer tube (in)☐ 4.33
Max. static load (lb)26460.00
Screw stroke (in ±0.39)16.54
Unitary weight (lb)99.23
B - Lenght outer tube (in)27.56
C - stroke (in)16.54
D - Total height when retracted (in)32.28
E - handle lenght (in)9.84
G - footplate dimension (in)9.84
H - dropleg extension (in)11.81
On requestYes
Simol S.p.A. Luzzara (RE) Via Fiocchetti 14 Cap 42045 Frazione: Codisotto
www.simol.com

Drawings and other technical data

Request information form

To request a information fill the form below and we will answer as soon as possible.
The fields marked with * are mandatory

Description



KRA750 Landing gears for tandem trailers, drop leg, gear box, 2-speed with total extension 26.77
in and 26460.00
lb Max. static load capacity
KRA750FL Landing gears for tandem trailers, drop leg, gear box, 2-speed with total extension 28.35
in and 26460.00
lb Max. static load capacity
KRA750FL/N Landing gears for tandem trailers, drop leg, gear box, 2-speed with total extension 33.07
in and 26460.00
lb Max. static load capacity
KRA750FL/ZC Landing gears for tandem trailers, drop leg, gear box, 2-speed with total extension 28.35
in and 26460.00
lb Max. static load capacity
