P560/3SF
P560/3SF
P560/3SFZ
P560/3SFZ
Type P 3SF

Type P 3SF

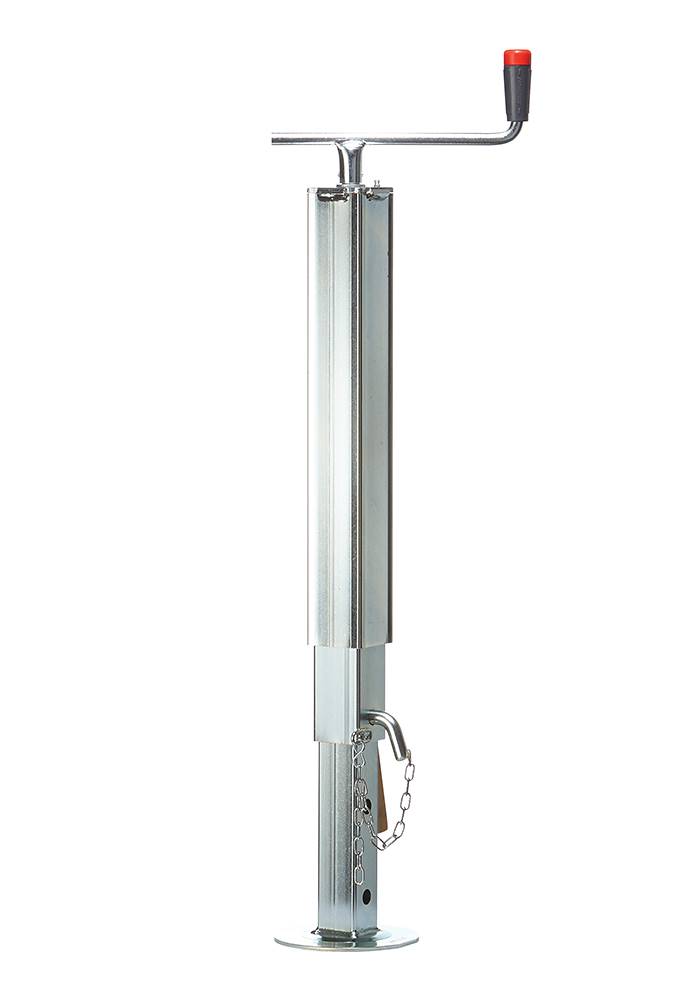

"Parking jack with horizontal handle, drop leg" designed square jacks
Request information Download technical material
Jacks and jockey wheels are partly completed machineries in compliance with Provisions of the Machinery Directive 2006/42/CE. The partly completed machinery must not be put into service until the final machinery into which it is to be incorporated has been declared in conformity with the Provisions of the Machinery Directive, where appropriate.

Technical data and performance

Surface treatment
Outer tube (in)
Max. static load (lb)
Screw stroke (in ±0.39)
Unitary weight (lb)
B - Lenght outer tube (in)
C - stroke (in)
D - Total height when retracted (in)
E - handle lenght (in)
G - footplate dimension (in)
H - dropleg extension (in)
On request
P560/3SF
Square Jacks
Surface treatment red water based rust preventer
Outer tube (in)☐ 2.76
Max. static load (lb)1764.00
Screw stroke (in ±0.39)12.20
Unitary weight (lb)24.70
B - Lenght outer tube (in)19.69
C - stroke (in)12.20
D - Total height when retracted (in)28.74
E - handle lenght (in)7.28
G - footplate dimension (in)6.30
H - dropleg extension (in)11.81
On requestNo
P575/3SF
Square Jacks
Surface treatment red water based rust preventer
Outer tube (in)☐ 3.15
Max. static load (lb)2205.00
Screw stroke (in ±0.39)14.17
Unitary weight (lb)36.82
B - Lenght outer tube (in)20.87
C - stroke (in)14.17
D - Total height when retracted (in)31.50
E - handle lenght (in)7.28
G - footplate dimension (in)6.30
H - dropleg extension (in)12.60
On requestNo
Square Jacks > Type P 3SF
Type P 3SF
Parking jack with horizontal handle, drop leg
P560/3SF
P560/3SF
P560/3SFZ
P560/3SFZ
page-break
Technical data and performance
Type P 3SF
Surface treatment
Outer tube (in)
Max. static load (lb)
Screw stroke (in ±0.39)
Unitary weight (lb)
B - Lenght outer tube (in)
C - stroke (in)
D - Total height when retracted (in)
E - handle lenght (in)
G - footplate dimension (in)
H - dropleg extension (in)
On request
P560/3SF
Square Jacks
Surface treatment red water based rust preventer
Outer tube (in)☐ 2.76
Max. static load (lb)1764.00
Screw stroke (in ±0.39)12.20
Unitary weight (lb)24.70
B - Lenght outer tube (in)19.69
C - stroke (in)12.20
D - Total height when retracted (in)28.74
E - handle lenght (in)7.28
G - footplate dimension (in)6.30
H - dropleg extension (in)11.81
On requestNo
P575/3SF
Square Jacks
Surface treatment red water based rust preventer
Outer tube (in)☐ 3.15
Max. static load (lb)2205.00
Screw stroke (in ±0.39)14.17
Unitary weight (lb)36.82
B - Lenght outer tube (in)20.87
C - stroke (in)14.17
D - Total height when retracted (in)31.50
E - handle lenght (in)7.28
G - footplate dimension (in)6.30
H - dropleg extension (in)12.60
On requestNo
Simol S.p.A. Luzzara (RE) Via Fiocchetti 14 Cap 42045 Frazione: Codisotto
www.simol.com

Drawings and other technical data

Request information form

To request a information fill the form below and we will answer as soon as possible.
The fields marked with * are mandatory

Description



P560/3SF Parking jack with horizontal handle, drop leg with total extension 24.02
in and 1764.00
lb Max. static load capacity
P575/3SF Parking jack with horizontal handle, drop leg with total extension 26.77
in and 2205.00
lb Max. static load capacity
