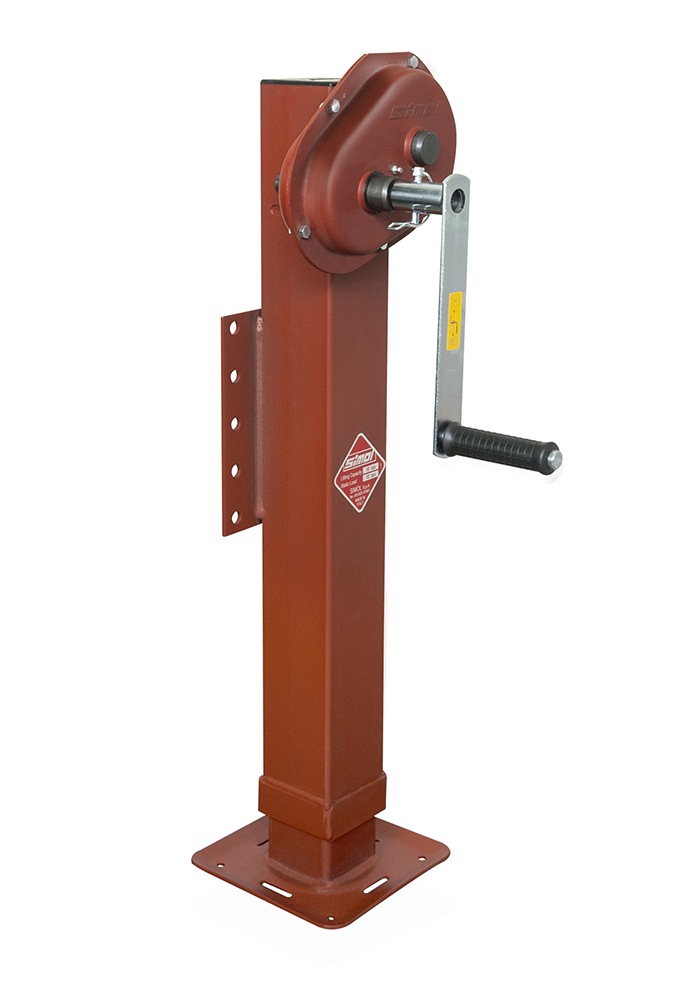

KRA1100 FL
KRA1100 FL
Type KRA 1100

Type KRA 1100

"Landing gears for tandem trailers,gear box, double speed." designed hd square jacks
Request information Download technical material
Jacks and jockey wheels are partly completed machineries in compliance with Provisions of the Machinery Directive 2006/42/CE. The partly completed machinery must not be put into service until the final machinery into which it is to be incorporated has been declared in conformity with the Provisions of the Machinery Directive, where appropriate.

Technical data and performance

Surface treatment
Outer tube (in)
Max. static load (lb)
Screw stroke (in ±0.39)
Unitary weight (lb)
B - Lenght outer tube (in)
C - stroke (in)
D - Total height when retracted (in)
E - handle lenght (in)
G - footplate dimension (in)
On request
KRA1100FL
Hd Square Jacks
Surface treatment red water based rust preventer
Outer tube (in)☐ 4.33
Max. static load (lb)26460.00
Screw stroke (in ±0.39)17.72
Unitary weight (lb)83.79
B - Lenght outer tube (in)35.43
C - stroke (in)18.50
D - Total height when retracted (in)37.80
E - handle lenght (in)9.84
G - footplate dimension (in)9.84
On requestNo
Hd Square Jacks > Type KRA 1100
Type KRA 1100
Landing gears for tandem trailers,gear box, double speed.
KRA1100 FL
KRA1100 FL
page-break
Technical data and performance
Type KRA 1100
Surface treatment
Outer tube (in)
Max. static load (lb)
Screw stroke (in ±0.39)
Unitary weight (lb)
B - Lenght outer tube (in)
C - stroke (in)
D - Total height when retracted (in)
E - handle lenght (in)
G - footplate dimension (in)
On request
KRA1100FL
Hd Square Jacks
Surface treatment red water based rust preventer
Outer tube (in)☐ 4.33
Max. static load (lb)26460.00
Screw stroke (in ±0.39)17.72
Unitary weight (lb)83.79
B - Lenght outer tube (in)35.43
C - stroke (in)18.50
D - Total height when retracted (in)37.80
E - handle lenght (in)9.84
G - footplate dimension (in)9.84
On requestNo
Simol S.p.A. Luzzara (RE) Via Fiocchetti 14 Cap 42045 Frazione: Codisotto
www.simol.com

Custom templates

KRA1100SFKRA1100SF

Drawings and other technical data

Request information form

To request a information fill the form below and we will answer as soon as possible.
The fields marked with * are mandatory

Description



KRA1100FL Landing gears for tandem trailers,gear box, double speed. with total extension 17.72
in ±0.39 and 26460.00
lb Max. static load capacity
