Type H
Type H

Type H

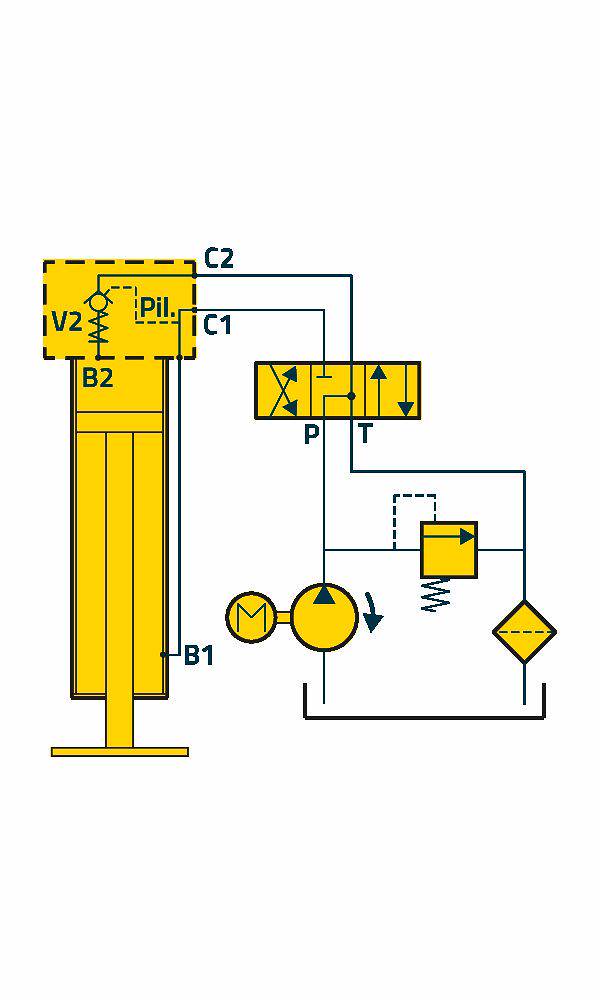

"double-acting hydraulic jack with block valve, welded foot. 1 safety valve. " designed hydraulic jacks
Request information Download technical material
Jacks and jockey wheels are partly completed machineries in compliance with Provisions of the Machinery Directive 2006/42/CE. The partly completed machinery must not be put into service until the final machinery into which it is to be incorporated has been declared in conformity with the Provisions of the Machinery Directive, where appropriate.

Technical data and performance

Stroke (in)
Surface treatment
Note
Outer tube (in)
Max. static load (lb)
Unitary weight (lb)

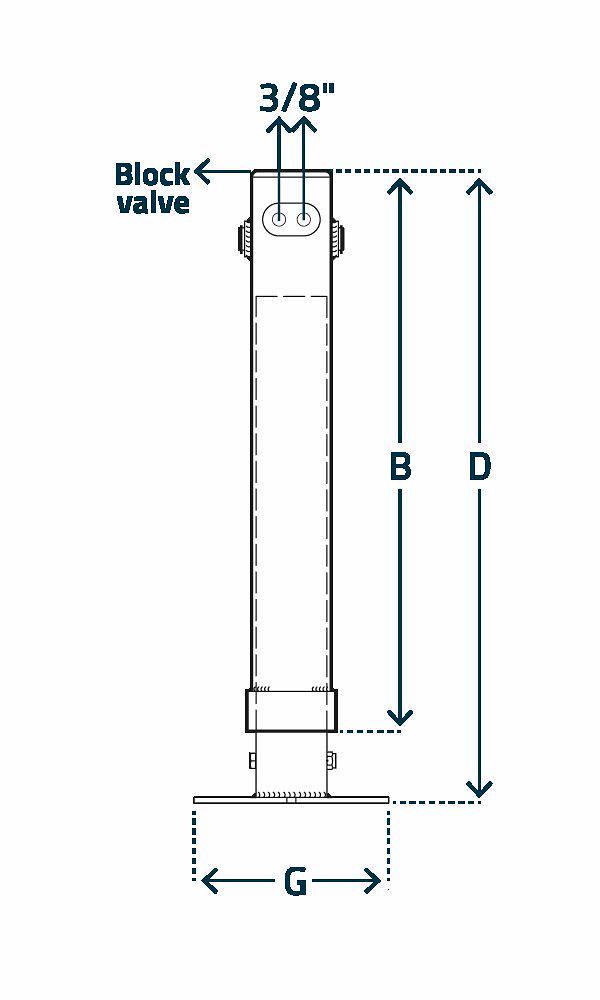

B - Lenght outer tube (in)
D - Total height when retracted (in)
G - footplate dimension (in)
On request
H940
Hydraulic Jacks
Stroke (in)15.75
Surface treatment red water based rust preventer
NoteMAX .working pressure 200 bar
Outer tube (in)☐ 3.54
Max. static load (lb)4299.75
Unitary weight (lb)50.72
B - Lenght outer tube (in)24.80
D - Total height when retracted (in)28.35
G - footplate dimension (in)8.66
On requestNo
H950
Hydraulic Jacks
Stroke (in)19.69
Surface treatment red water based rust preventer
NoteMAX .working pressure 200 bar
Outer tube (in)☐ 3.54
Max. static load (lb)4299.75
Unitary weight (lb)55.13
B - Lenght outer tube (in)28.74
D - Total height when retracted (in)32.28
G - footplate dimension (in)8.66
On requestNo
H970
Hydraulic Jacks
Stroke (in)27.56
Surface treatment red water based rust preventer
NoteMAX .working pressure 200 bar
Outer tube (in)☐ 3.54
Max. static load (lb)4299.75
Unitary weight (lb)78.28
B - Lenght outer tube (in)36.61
D - Total height when retracted (in)40.16
G - footplate dimension (in)8.66
On requestNo
H1040
Hydraulic Jacks
Stroke (in)15.75
Surface treatment red water based rust preventer
NoteMAX .working pressure 200 bar
Outer tube (in)☐ 3.94
Max. static load (lb)6174.00
Unitary weight (lb)66.15
B - Lenght outer tube (in)24.80
D - Total height when retracted (in)28.35
G - footplate dimension (in)11.02
On requestNo
H1050
Hydraulic Jacks
Stroke (in)19.69
Surface treatment red water based rust preventer
NoteMAX .working pressure 200 bar
Outer tube (in)☐ 3.94
Max. static load (lb)6174.00
Unitary weight (lb)71.66
B - Lenght outer tube (in)28.74
D - Total height when retracted (in)32.28
G - footplate dimension (in)11.02
On requestNo
H1060
Hydraulic Jacks
Stroke (in)23.62
Surface treatment red water based rust preventer
NoteMAX .working pressure 200 bar
Outer tube (in)☐ 3.94
Max. static load (lb)6174.00
Unitary weight (lb)77.18
B - Lenght outer tube (in)32.68
D - Total height when retracted (in)36.22
G - footplate dimension (in)11.02
On requestYes
H1070
Hydraulic Jacks
Stroke (in)27.56
Surface treatment red water based rust preventer
NoteMAX .working pressure 200 bar
Outer tube (in)☐ 3.94
Max. static load (lb)6174.00
Unitary weight (lb)82.69
B - Lenght outer tube (in)36.61
D - Total height when retracted (in)39.76
G - footplate dimension (in)11.02
On requestYes
Hydraulic Jacks > Type H
Type H
double-acting hydraulic jack with block valve, welded foot. 1 safety valve.
H950
H950
page-break
Technical data and performance
Type H
Stroke (in)
Surface treatment
Note
Outer tube (in)
Max. static load (lb)
Unitary weight (lb)
B - Lenght outer tube (in)
D - Total height when retracted (in)
G - footplate dimension (in)
On request
H940
Hydraulic Jacks
Stroke (in)15.75
Surface treatment red water based rust preventer
NoteMAX .working pressure 200 bar
Outer tube (in)☐ 3.54
Max. static load (lb)4299.75
Unitary weight (lb)50.72
B - Lenght outer tube (in)24.80
D - Total height when retracted (in)28.35
G - footplate dimension (in)8.66
On requestNo
H950
Hydraulic Jacks
Stroke (in)19.69
Surface treatment red water based rust preventer
NoteMAX .working pressure 200 bar
Outer tube (in)☐ 3.54
Max. static load (lb)4299.75
Unitary weight (lb)55.13
B - Lenght outer tube (in)28.74
D - Total height when retracted (in)32.28
G - footplate dimension (in)8.66
On requestNo
H970
Hydraulic Jacks
Stroke (in)27.56
Surface treatment red water based rust preventer
NoteMAX .working pressure 200 bar
Outer tube (in)☐ 3.54
Max. static load (lb)4299.75
Unitary weight (lb)78.28
B - Lenght outer tube (in)36.61
D - Total height when retracted (in)40.16
G - footplate dimension (in)8.66
On requestNo
page-break
Technical data and performance
Type H
Stroke (in)
Surface treatment
Note
Outer tube (in)
Max. static load (lb)
Unitary weight (lb)
B - Lenght outer tube (in)
D - Total height when retracted (in)
G - footplate dimension (in)
On request
H1040
Hydraulic Jacks
Stroke (in)15.75
Surface treatment red water based rust preventer
NoteMAX .working pressure 200 bar
Outer tube (in)☐ 3.94
Max. static load (lb)6174.00
Unitary weight (lb)66.15
B - Lenght outer tube (in)24.80
D - Total height when retracted (in)28.35
G - footplate dimension (in)11.02
On requestNo
H1050
Hydraulic Jacks
Stroke (in)19.69
Surface treatment red water based rust preventer
NoteMAX .working pressure 200 bar
Outer tube (in)☐ 3.94
Max. static load (lb)6174.00
Unitary weight (lb)71.66
B - Lenght outer tube (in)28.74
D - Total height when retracted (in)32.28
G - footplate dimension (in)11.02
On requestNo
H1060
Hydraulic Jacks
Stroke (in)23.62
Surface treatment red water based rust preventer
NoteMAX .working pressure 200 bar
Outer tube (in)☐ 3.94
Max. static load (lb)6174.00
Unitary weight (lb)77.18
B - Lenght outer tube (in)32.68
D - Total height when retracted (in)36.22
G - footplate dimension (in)11.02
On requestYes
page-break
Technical data and performance
Type H
Stroke (in)
Surface treatment
Note
Outer tube (in)
Max. static load (lb)
Unitary weight (lb)
B - Lenght outer tube (in)
D - Total height when retracted (in)
G - footplate dimension (in)
On request
H1070
Hydraulic Jacks
Stroke (in)27.56
Surface treatment red water based rust preventer
NoteMAX .working pressure 200 bar
Outer tube (in)☐ 3.94
Max. static load (lb)6174.00
Unitary weight (lb)82.69
B - Lenght outer tube (in)36.61
D - Total height when retracted (in)39.76
G - footplate dimension (in)11.02
On requestYes
