DT480/2
DT480/2
Type DT 4

Type DT 4

"Jacks set" designed square jacks
Request information Download technical material
Jacks and jockey wheels are partly completed machineries in compliance with Provisions of the Machinery Directive 2006/42/CE. The partly completed machinery must not be put into service until the final machinery into which it is to be incorporated has been declared in conformity with the Provisions of the Machinery Directive, where appropriate.

Technical data and performance

Surface treatment
Mixed surface treatments
Note
Outer tube (in)
Max. static load (lb)
Screw stroke (in ±0.39)
Unitary weight (lb)

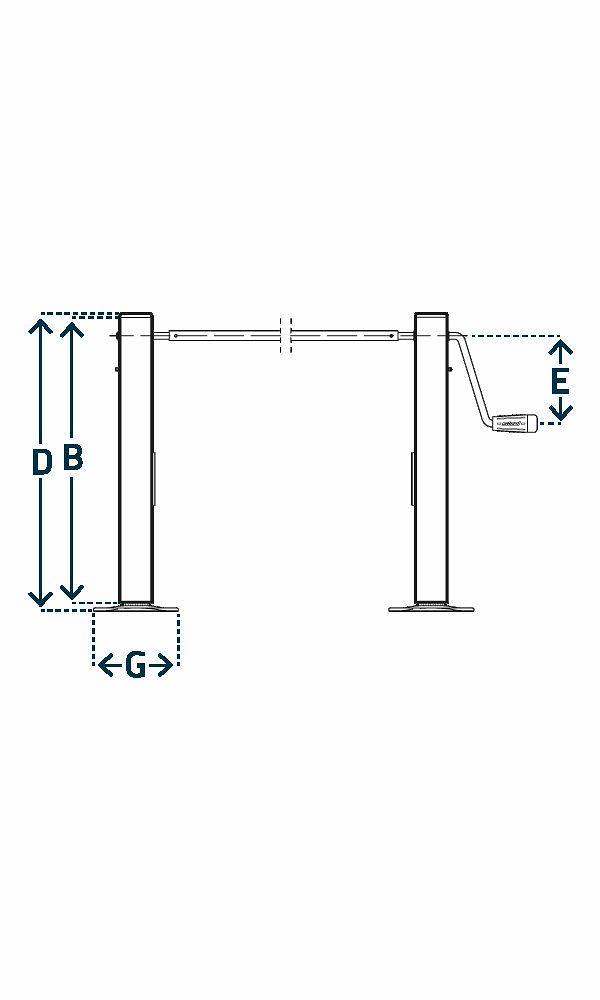

B - Lenght outer tube (in)
D - Total height when retracted (in)
E - handle lenght (in)
G - footplate dimension (in)
On request
DT480/2
Square Jacks
Surface treatment powder coating
Mixed surface treatmentsHardware, handle, pin and washer: Cold galvanizing
Sandblasting + Cataphoresis + RAL-9005 powder coating
NoteFixed footplate
The connection bar is not provided
Outer tube (in)☐ 2.36
Max. static load (lb)3307.50
Screw stroke (in ±0.39)13.78
Unitary weight (lb)31.31
B - Lenght outer tube (in)21.46
D - Total height when retracted (in)22.24
E - handle lenght (in)6.61
G - footplate dimension (in)6.30
On requestNo
Square Jacks > Type DT 4
Type DT 4
Jacks set
DT480/2
DT480/2
page-break
Technical data and performance
Type DT 4
Surface treatment
Mixed surface treatments
Note
Outer tube (in)
Max. static load (lb)
Screw stroke (in ±0.39)
Unitary weight (lb)
B - Lenght outer tube (in)
D - Total height when retracted (in)
E - handle lenght (in)
G - footplate dimension (in)
On request
DT480/2
Square Jacks
Surface treatment powder coating
Mixed surface treatmentsHardware, handle, pin and washer: Cold galvanizing
Sandblasting + Cataphoresis + RAL-9005 powder coating
NoteFixed footplate
The connection bar is not provided
Outer tube (in)☐ 2.36
Max. static load (lb)3307.50
Screw stroke (in ±0.39)13.78
Unitary weight (lb)31.31
B - Lenght outer tube (in)21.46
D - Total height when retracted (in)22.24
E - handle lenght (in)6.61
G - footplate dimension (in)6.30
On requestNo
Simol S.p.A. Luzzara (RE) Via Fiocchetti 14 Cap 42045 Frazione: Codisotto
www.simol.com

Drawings and other technical data

Request information form

To request a information fill the form below and we will answer as soon as possible.
The fields marked with * are mandatory

Description



DT480/2 Jacks set with total extension 13.78
in ±0.39 and 3307.50
lb Max. static load capacity
