"Wheel jack with semiautomated turnover and spring locking, with side handle" designed wheel jacks
Request information Download technical material
Jacks and jockey wheels are partly completed machineries in compliance with Provisions of the Machinery Directive 2006/42/CE. The partly completed machinery must not be put into service until the final machinery into which it is to be incorporated has been declared in conformity with the Provisions of the Machinery Directive, where appropriate.

Technical data and performance

Surface treatment
Outer tube (in)
Max. static load (lb)
Screw stroke (in ±0.39)
Steel wheels (in)
Rubber wheels (in)
Unitary weight (lb)

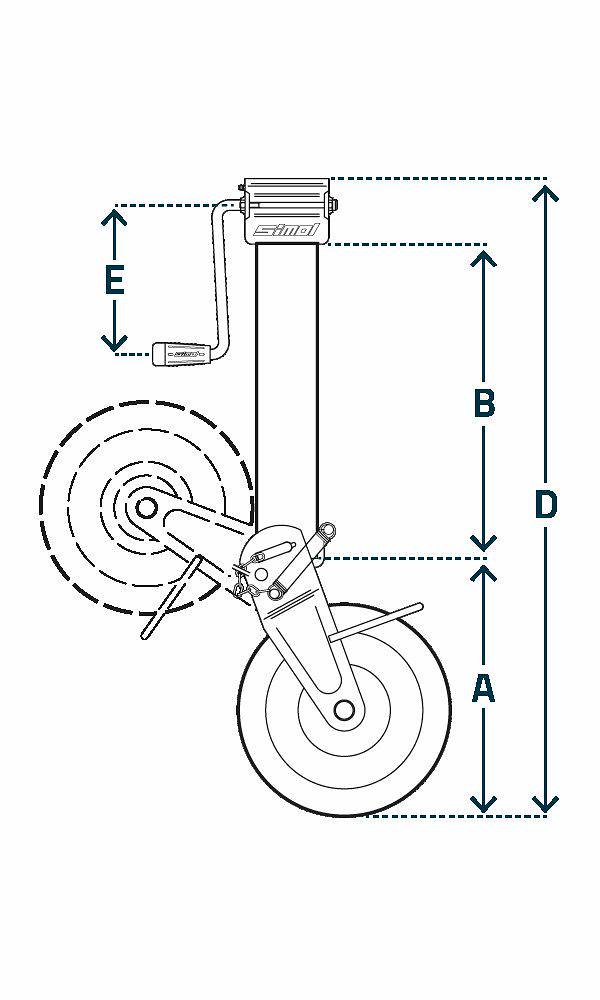

A (in)
B - Lenght outer tube (in)
D - Total height when retracted (in)
E - handle lenght (in)
On request
DM414
Wheel Jacks
Surface treatment red water based rust preventer
Outer tube (in)Ø 2.76
Max. static load (lb)2205.00
Screw stroke (in ±0.39)11.81
Steel wheels (in)10.83 x 2.76
Rubber wheels (in)
Unitary weight (lb)30.87
A (in)12.99
B - Lenght outer tube (in)18.11
D - Total height when retracted (in)34.65
E - handle lenght (in)8.86
On requestYes
DM432
Wheel Jacks
Surface treatment red water based rust preventer
Outer tube (in)Ø 3.54
Max. static load (lb)4410.00
Screw stroke (in ±0.39)11.81
Steel wheels (in)12.20 x 3.54
Rubber wheels (in)
Unitary weight (lb)55.13
A (in)14.57
B - Lenght outer tube (in)17.91
D - Total height when retracted (in)36.22
E - handle lenght (in)8.86
On requestNo
DM437
Wheel Jacks
Surface treatment red water based rust preventer
Outer tube (in)☐ 3.15
Max. static load (lb)4189.50
Screw stroke (in ±0.39)11.81
Steel wheels (in)12.20 x 3.54
Rubber wheels (in)
Unitary weight (lb)50.72
A (in)14.57
B - Lenght outer tube (in)18.11
D - Total height when retracted (in)36.42
E - handle lenght (in)8.86
On requestYes

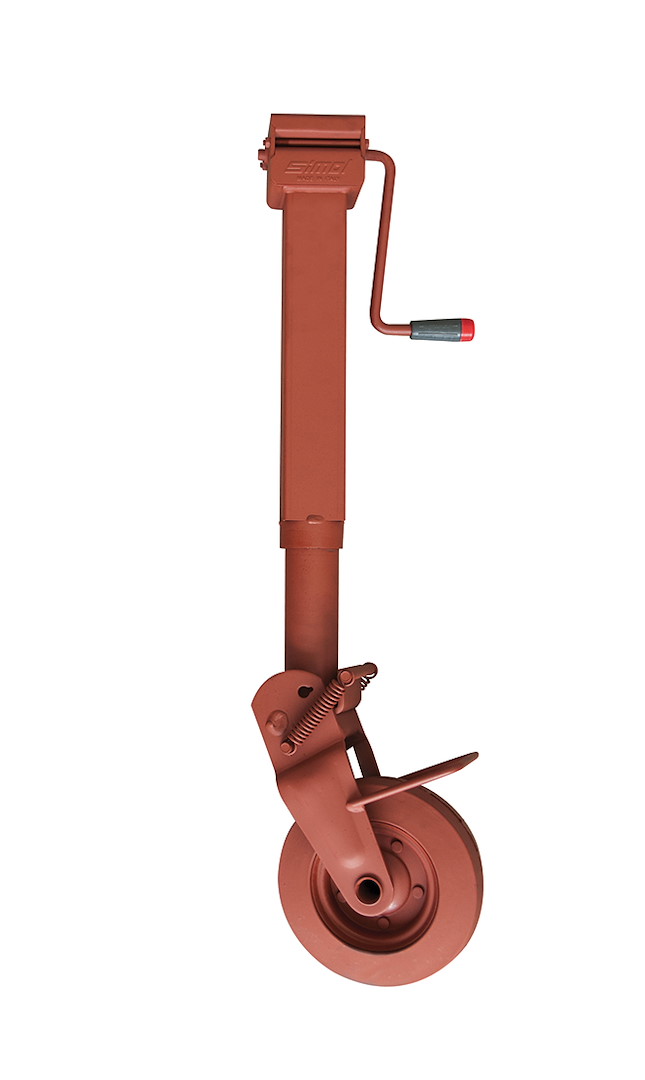

DM437/1
Wheel Jacks
Surface treatment red water based rust preventer
Outer tube (in)☐ 3.15
Max. static load (lb)2646.00
Screw stroke (in ±0.39)11.81
Steel wheels (in)
Rubber wheels (in)9.84 x 3.15
Unitary weight (lb)50.72
A (in)13.58
B - Lenght outer tube (in)18.11
D - Total height when retracted (in)35.43
E - handle lenght (in)8.86
On requestYes
Wheel Jacks > Type DM 4
Type DM 4
Wheel jack with semiautomated turnover and spring locking, with side handle
DM432
DM432
DM437
DM437
page-break
Technical data and performance
Type DM 4
Surface treatment
Outer tube (in)
Max. static load (lb)
Screw stroke (in ±0.39)
Steel wheels (in)
Rubber wheels (in)
Unitary weight (lb)
A (in)
B - Lenght outer tube (in)
D - Total height when retracted (in)
E - handle lenght (in)
On request
DM414
Wheel Jacks
Surface treatment red water based rust preventer
Outer tube (in)Ø 2.76
Max. static load (lb)2205.00
Screw stroke (in ±0.39)11.81
Steel wheels (in)10.83 x 2.76
Rubber wheels (in)
Unitary weight (lb)30.87
A (in)12.99
B - Lenght outer tube (in)18.11
D - Total height when retracted (in)34.65
E - handle lenght (in)8.86
On requestYes
DM432
Wheel Jacks
Surface treatment red water based rust preventer
Outer tube (in)Ø 3.54
Max. static load (lb)4410.00
Screw stroke (in ±0.39)11.81
Steel wheels (in)12.20 x 3.54
Rubber wheels (in)
Unitary weight (lb)55.13
A (in)14.57
B - Lenght outer tube (in)17.91
D - Total height when retracted (in)36.22
E - handle lenght (in)8.86
On requestNo
DM437
Wheel Jacks
Surface treatment red water based rust preventer
Outer tube (in)☐ 3.15
Max. static load (lb)4189.50
Screw stroke (in ±0.39)11.81
Steel wheels (in)12.20 x 3.54
Rubber wheels (in)
Unitary weight (lb)50.72
A (in)14.57
B - Lenght outer tube (in)18.11
D - Total height when retracted (in)36.42
E - handle lenght (in)8.86
On requestYes
page-break
Technical data and performance
Type DM 4
Surface treatment
Outer tube (in)
Max. static load (lb)
Screw stroke (in ±0.39)
Steel wheels (in)
Rubber wheels (in)
Unitary weight (lb)
A (in)
B - Lenght outer tube (in)
D - Total height when retracted (in)
E - handle lenght (in)
On request
DM437/1
Wheel Jacks
Surface treatment red water based rust preventer
Outer tube (in)☐ 3.15
Max. static load (lb)2646.00
Screw stroke (in ±0.39)11.81
Steel wheels (in)
Rubber wheels (in)9.84 x 3.15
Unitary weight (lb)50.72
A (in)13.58
B - Lenght outer tube (in)18.11
D - Total height when retracted (in)35.43
E - handle lenght (in)8.86
On requestYes
Simol S.p.A. Luzzara (RE) Via Fiocchetti 14 Cap 42045 Frazione: Codisotto
www.simol.com

Custom templates

DM437_1DM437_1

Drawings and other technical data

Request information form

To request a information fill the form below and we will answer as soon as possible.
The fields marked with * are mandatory

Description



DM414 Wheel jack with semiautomated turnover and spring locking, with side handle with total extension 11.81
in ±0.39 and 2205.00
lb Max. static load capacity
DM432 Wheel jack with semiautomated turnover and spring locking, with side handle with total extension 11.81
in ±0.39 and 4410.00
lb Max. static load capacity
DM437 Wheel jack with semiautomated turnover and spring locking, with side handle with total extension 11.81
in ±0.39 and 4189.50
lb Max. static load capacity
DM437/1 Wheel jack with semiautomated turnover and spring locking, with side handle with total extension 11.81
in ±0.39 and 2646.00
lb Max. static load capacity
