Square Jacks
>
Type DG600/3SF1W
DG600/3SF1W
DG600/3SF1W
Type DG600/3SF1W
"Swivel parking jacks with side handle, 2-speed, drop leg" designed square jacks
Request information
Download technical material
Watch the video
Jacks and jockey wheels are partly completed machineries in compliance with Provisions of the Machinery Directive 2006/42/CE. The partly completed machinery must not be put into service until the final machinery into which it is to be incorporated has been declared in conformity with the Provisions of the Machinery Directive, where appropriate.
Models
Models
Technical data
Request information
Video and description
Technical data and performance
Surface treatment
Note
Outer tube (in)
Max. static load (lb)
Screw stroke (in ±0.39)
Unitary weight (lb)
B - Lenght outer tube (in)
C - stroke (in)
D - Total height when retracted (in)
E - handle lenght (in)
G - footplate dimension (in)
H - dropleg extension (in)
I (in)
On request
DG600/3SF1W
Square Jacks
Surface treatment
cold-dip galvanized
Note
galvanized
Outer tube (in)
☐ 2.76
Max. static load (lb)
7210.35
Screw stroke (in ±0.39)
11.81
Unitary weight (lb)
29.77
B - Lenght outer tube (in)
21.46
C - stroke (in)
14.76
D - Total height when retracted (in)
25.00
E - handle lenght (in)
8.27
G - footplate dimension (in)
4.72 x 6.50
H - dropleg extension (in)
13.98
I (in)
18.19
On request
No
Square Jacks > Type DG600/3SF1W
Type DG600/3SF1W
Swivel parking jacks with side handle, 2-speed, drop leg
DG600/3SF1W
page-break
Technical data and performance
Type DG600/3SF1W
Surface treatment
Note
Outer tube (in)
Max. static load (lb)
Screw stroke (in ±0.39)
Unitary weight (lb)
B - Lenght outer tube (in)
C - stroke (in)
D - Total height when retracted (in)
E - handle lenght (in)
G - footplate dimension (in)
H - dropleg extension (in)
I (in)
On request
DG600/3SF1W
Square Jacks
Surface treatment
cold-dip galvanized
Note
galvanized
Outer tube (in)
☐ 2.76
Max. static load (lb)
7210.35
Screw stroke (in ±0.39)
11.81
Unitary weight (lb)
29.77
B - Lenght outer tube (in)
21.46
C - stroke (in)
14.76
D - Total height when retracted (in)
25.00
E - handle lenght (in)
8.27
G - footplate dimension (in)
4.72 x 6.50
H - dropleg extension (in)
13.98
I (in)
18.19
On request
No

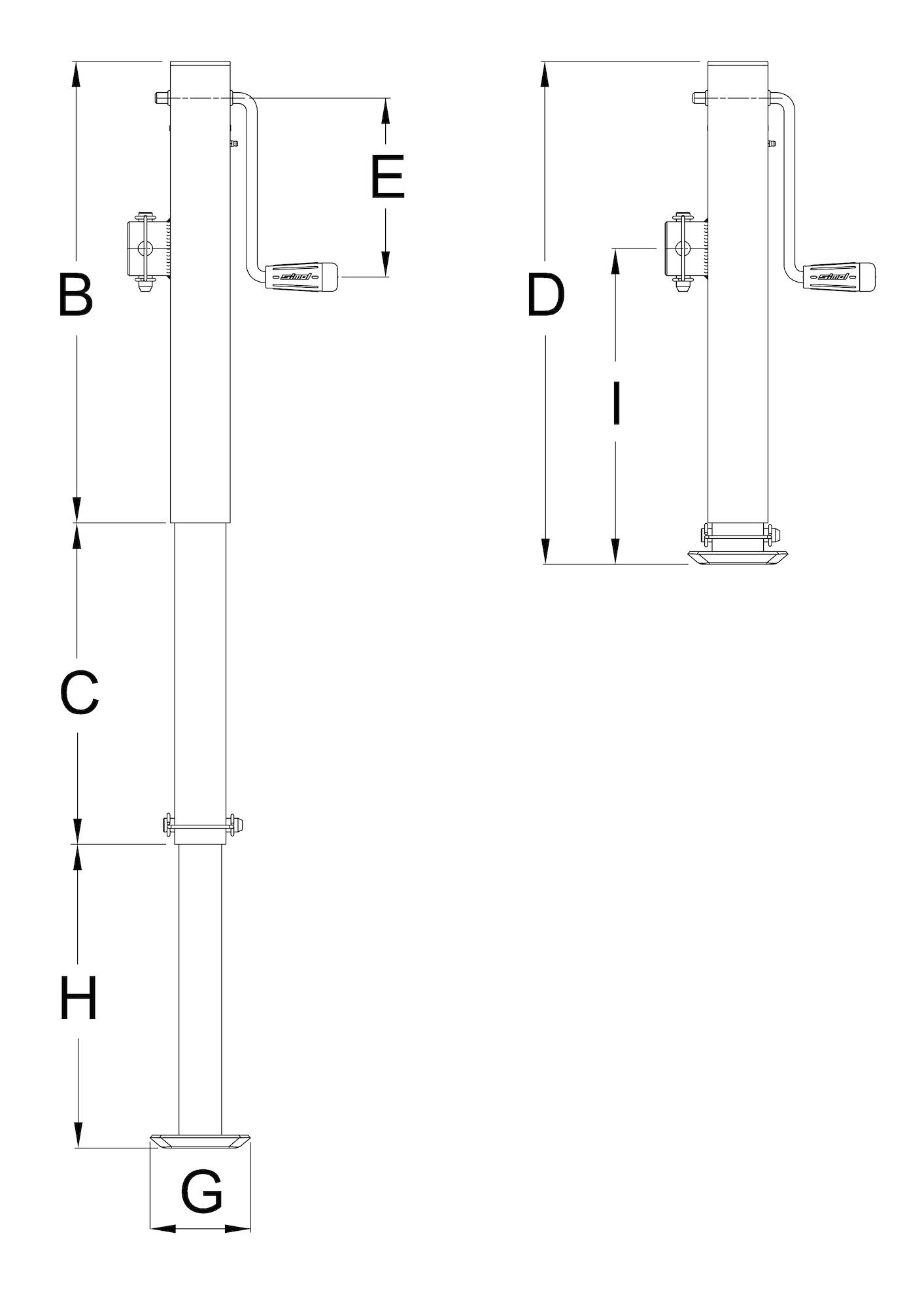

Drawings and other technical data
Request information form
To request a information fill the form below and we will answer as soon as possible.
The fields marked with * are mandatory
Video
Please
accept preferences, statistics, marketing cookies
to see this content
Description
DG600/3SF1W Swivel parking jacks with side handle, 2-speed, drop leg with total extension 25.20
in and 7210.35
lb Max. static load capacity
