"Parking jacks with side handle" designed square jacks
Request information Download technical material
Jacks and jockey wheels are partly completed machineries in compliance with Provisions of the Machinery Directive 2006/42/CE. The partly completed machinery must not be put into service until the final machinery into which it is to be incorporated has been declared in conformity with the Provisions of the Machinery Directive, where appropriate.

Technical data and performance

Surface treatment
Note
Outer tube (in)
Max. static load (lb)
Screw stroke (in ±0.39)
Unitary weight (lb)

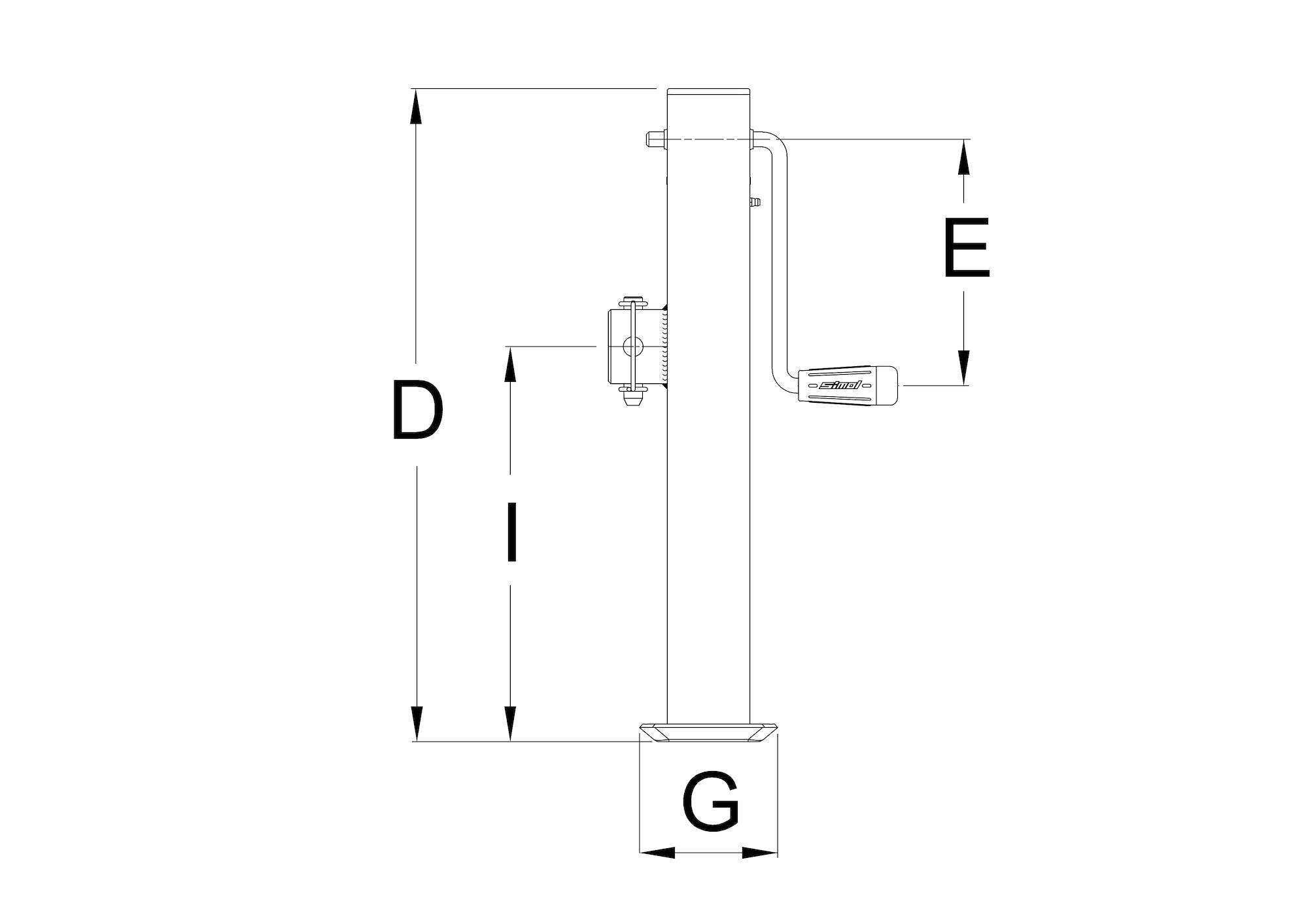

D - Total height when retracted (in)
E - handle lenght (in)
G - footplate dimension (in)
I (in)
J (in)
On request
DG590
Square Jacks
Surface treatment red water based rust preventer
Note
Outer tube (in)☐ 2.76
Max. static load (lb)3307.50
Screw stroke (in ±0.39)14.17
Unitary weight (lb)22.05
D - Total height when retracted (in)21.85
E - handle lenght (in)6.57
G - footplate dimension (in)4.72 x 6.50
I (in)
J (in)
On requestNo
DG590/Z
Square Jacks
Surface treatment cold-dip galvanized
Notegalvanized
Outer tube (in)☐ 2.76
Max. static load (lb)3307.50
Screw stroke (in ±0.39)14.17
Unitary weight (lb)23.15
D - Total height when retracted (in)21.85
E - handle lenght (in)6.57
G - footplate dimension (in)4.72 x 6.50
I (in)14.88
J (in)
On requestYes
DG595/2Z
Square Jacks
Surface treatment cold-dip galvanized
Note
Outer tube (in)☐ 2.76
Max. static load (lb)8000.00
Screw stroke (in ±0.39)14.17
Unitary weight (lb)25.36
D - Total height when retracted (in)23.82
E - handle lenght (in)8,58
G - footplate dimension (in) 5,9 x 7,87
I (in)15.16
J (in)29,33
On requestYes
Square Jacks > Type DG5
Type DG5
Parking jacks with side handle
DG590
DG590
DG590/Z
DG590/Z
page-break
Technical data and performance
Type DG5
Surface treatment
Note
Outer tube (in)
Max. static load (lb)
Screw stroke (in ±0.39)
Unitary weight (lb)
D - Total height when retracted (in)
E - handle lenght (in)
G - footplate dimension (in)
I (in)
J (in)
On request
DG590
Square Jacks
Surface treatment red water based rust preventer
Note
Outer tube (in)☐ 2.76
Max. static load (lb)3307.50
Screw stroke (in ±0.39)14.17
Unitary weight (lb)22.05
D - Total height when retracted (in)21.85
E - handle lenght (in)6.57
G - footplate dimension (in)4.72 x 6.50
I (in)
J (in)
On requestNo
DG590/Z
Square Jacks
Surface treatment cold-dip galvanized
Notegalvanized
Outer tube (in)☐ 2.76
Max. static load (lb)3307.50
Screw stroke (in ±0.39)14.17
Unitary weight (lb)23.15
D - Total height when retracted (in)21.85
E - handle lenght (in)6.57
G - footplate dimension (in)4.72 x 6.50
I (in)14.88
J (in)
On requestYes
DG595/2Z
Square Jacks
Surface treatment cold-dip galvanized
Note
Outer tube (in)☐ 2.76
Max. static load (lb)8000.00
Screw stroke (in ±0.39)14.17
Unitary weight (lb)25.36
D - Total height when retracted (in)23.82
E - handle lenght (in)8,58
G - footplate dimension (in) 5,9 x 7,87
I (in)15.16
J (in)29,33
On requestYes
Simol S.p.A. Luzzara (RE) Via Fiocchetti 14 Cap 42045 Frazione: Codisotto
www.simol.com

Drawings and other technical data

Request information form

To request a information fill the form below and we will answer as soon as possible.
The fields marked with * are mandatory

Description



DG590 Parking jacks with side handle with total extension 14.17
in ±0.39 and 3307.50
lb Max. static load capacity
DG590/Z Parking jacks with side handle with total extension 14.17
in ±0.39 and 3307.50
lb Max. static load capacity
DG595/2Z Parking jacks with side handle with total extension 14.17
in ±0.39 and 8000.00
lb Max. static load capacity
