DG706/3SFW
DG706/3SFW
Type DG3SFW

Type DG3SFW

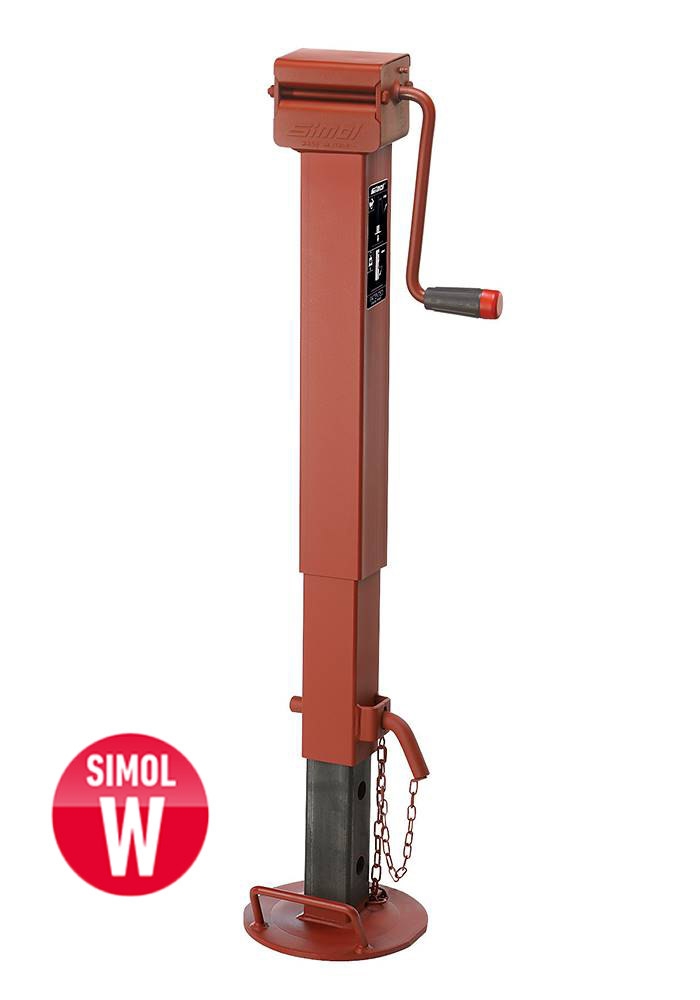

"Parking jacks with side handle and reductions geaars, 2-speed, drop leg" designed square jacks
Request information Download technical material Watch the video
Jacks and jockey wheels are partly completed machineries in compliance with Provisions of the Machinery Directive 2006/42/CE. The partly completed machinery must not be put into service until the final machinery into which it is to be incorporated has been declared in conformity with the Provisions of the Machinery Directive, where appropriate.

Technical data and performance

Surface treatment
Outer tube (in)
Max. static load (lb)
Screw stroke (in ±0.39)
Unitary weight (lb)

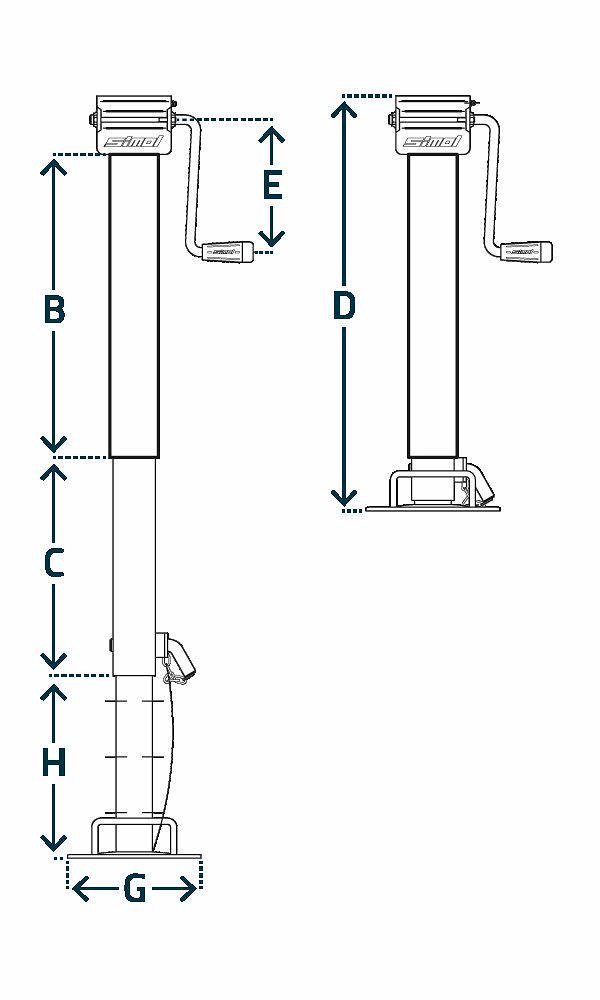

B - Lenght outer tube (in)
C - stroke (in)
D - Total height when retracted (in)
E - handle lenght (in)
G - footplate dimension (in)
H - dropleg extension (in)
On request
DG487/3SFW
Square Jacks
Surface treatment red water based rust preventer
Outer tube (in)☐ 3.54
Max. static load (lb)11995.20
Screw stroke (in ±0.39)14.17
Unitary weight (lb)66.59
B - Lenght outer tube (in)23.62
C - stroke (in)17.32
D - Total height when retracted (in)30.31
E - handle lenght (in)8.86
G - footplate dimension (in)11.02
H - dropleg extension (in)15.75
On requestNo
DG706/3SFW
Square Jacks
Surface treatment red water based rust preventer
Outer tube (in)☐ 3.15
Max. static load (lb)9999.68
Screw stroke (in ±0.39)11.81
Unitary weight (lb)46.31
B - Lenght outer tube (in)19.69
C - stroke (in)14.96
D - Total height when retracted (in)26.97
E - handle lenght (in)8.86
G - footplate dimension (in)8.66
H - dropleg extension (in)10.87
On requestNo
DG709/3SFW
Square Jacks
Surface treatment red water based rust preventer
Outer tube (in)☐ 3.15
Max. static load (lb)9999.68
Screw stroke (in ±0.39)19.29
Unitary weight (lb)50.72
B - Lenght outer tube (in)29.53
C - stroke (in)22.44
D - Total height when retracted (in)36.81
E - handle lenght (in)8.86
G - footplate dimension (in)8.66
H - dropleg extension (in)14.37
On requestNo
Square Jacks > Type DG3SFW
Type DG3SFW
Parking jacks with side handle and reductions geaars, 2-speed, drop leg
DG706/3SFW
DG706/3SFW
page-break
Technical data and performance
Type DG3SFW
Surface treatment
Outer tube (in)
Max. static load (lb)
Screw stroke (in ±0.39)
Unitary weight (lb)
B - Lenght outer tube (in)
C - stroke (in)
D - Total height when retracted (in)
E - handle lenght (in)
G - footplate dimension (in)
H - dropleg extension (in)
On request
DG487/3SFW
Square Jacks
Surface treatment red water based rust preventer
Outer tube (in)☐ 3.54
Max. static load (lb)11995.20
Screw stroke (in ±0.39)14.17
Unitary weight (lb)66.59
B - Lenght outer tube (in)23.62
C - stroke (in)17.32
D - Total height when retracted (in)30.31
E - handle lenght (in)8.86
G - footplate dimension (in)11.02
H - dropleg extension (in)15.75
On requestNo
DG706/3SFW
Square Jacks
Surface treatment red water based rust preventer
Outer tube (in)☐ 3.15
Max. static load (lb)9999.68
Screw stroke (in ±0.39)11.81
Unitary weight (lb)46.31
B - Lenght outer tube (in)19.69
C - stroke (in)14.96
D - Total height when retracted (in)26.97
E - handle lenght (in)8.86
G - footplate dimension (in)8.66
H - dropleg extension (in)10.87
On requestNo
DG709/3SFW
Square Jacks
Surface treatment red water based rust preventer
Outer tube (in)☐ 3.15
Max. static load (lb)9999.68
Screw stroke (in ±0.39)19.29
Unitary weight (lb)50.72
B - Lenght outer tube (in)29.53
C - stroke (in)22.44
D - Total height when retracted (in)36.81
E - handle lenght (in)8.86
G - footplate dimension (in)8.66
H - dropleg extension (in)14.37
On requestNo
Simol S.p.A. Luzzara (RE) Via Fiocchetti 14 Cap 42045 Frazione: Codisotto
www.simol.com

Drawings and other technical data

Request information form

To request a information fill the form below and we will answer as soon as possible.
The fields marked with * are mandatory

Video

Description



DG487/3SFW Parking jacks with side handle and reductions geaars, 2-speed, drop leg with total extension 14.17
in ±0.39 and 11995.20
lb Max. static load capacity
DG706/3SFW Parking jacks with side handle and reductions geaars, 2-speed, drop leg with total extension 22.68
in and 9999.68
lb Max. static load capacity
DG709/3SFW Parking jacks with side handle and reductions geaars, 2-speed, drop leg with total extension 19.29
in ±0.39 and 9999.68
lb Max. static load capacity
